traefik网关基础概念与helm部署

API网关 Kubernetes Traefik
字数统计: 3.1k阅读时长: 15 min
2026/10/03

文档地址：Traefik Proxy Documentation - Traefik
Kubernetes and Traefik Quick Start - Traefik

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
                    ┌─────────────────────────────────────────────┐
   请求进来  ─────▶ │ EntryPoint（入口点）                          │
                    │   web:8000   websecure:8443   traefik:8080   │
                    └──────────────────┬──────────────────────────┘
                                       ▼
                    ┌─────────────────────────────────────────────┐
                    │ ① Router（路由器）—— 决定"归谁管"             │
                    │    rule: Host(`whoami.x`) && PathPrefix(`/`) │
                    └──────────────────┬──────────────────────────┘
                                       ▼
                    ┌─────────────────────────────────────────────┐
                    │ ② Middleware（中间件链）—— 决定"怎么处理"       │
                    │    basicAuth → rateLimit → retry → stripPrefix│
                    │    （显式声明顺序，可复用、可 chain 组合）       │
                    └──────────────────┬──────────────────────────┘
                                       ▼
                    ┌─────────────────────────────────────────────┐
                    │ ③ Service（服务）—— 决定"转给谁"              │
                    │    负载均衡策略 / 健康检查 / 权重              │
                    └──────────────────┬──────────────────────────┘
                                       ▼
                                   后端 Pod
   配置从哪来？──▶ Provider（提供者）：file / docker / k8sCRD /
                                      k8sIngress / k8sGateway / ...
   热加载──▶ 动态修改 ①②③，不重启、不 reload

Router 管匹配，Middleware 管处理，Service 管转发

特点

  • Provider多源服务发现，不是deployment/service层面的发现， 是CRD层面的发现，由provider决定
  • HTTPS自动化
  • 零配置文件，配置保存在label、CRD等中

基础概念与首次部署

官方推荐使用helm进行部署
前面的这几个组件之中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
helm repo add traefik https://traefik.github.io/charts
helm repo update

helm search repo traefik
NAME                    CHART VERSION   APP VERSION     DESCRIPTION
traefik/traefik         41.6.0          v3.7.13         A Traefik based Kubernetes ingress controller
traefik/traefik-crds    1.18.0                          A Traefik based Kubernetes ingress controller
traefik/traefik-hub     4.2.0           v2.11.0         Traefik Hub Ingress Controller
traefik/traefik-mesh    4.1.1           v1.4.8          Traefik Mesh - Simpler Service Mesh
traefik/traefikee       4.2.10          v2.12.10        Traefik Enterprise is a unified cloud-native ne...
traefik/hub-manager     1.0.0           v0.45.1         A Helm chart for hub-manager
traefik/maesh           2.1.2           v1.3.2          Maesh - Simpler Service Mesh


# 需要先安装Gateway API CRD
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.6.1/standard-install.yaml
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.6.1/experimental-install.yaml

# 自签发证书与secret存储
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout tls.key -out tls.crt -subj "/CN=*.docker.localhost"
kubectl create secret tls local-selfsigned-tls \
  --cert=tls.crt --key=tls.key --namespace traefik

Gateway 的 HTTPS listener 通过 certificateRefs 引用这个 Secret。没有它，helm chart 校验会失败，HTTP→HTTPS 重定向链会断。

# ============================================================
# Traefik values.yaml
# 来源: 官方 setup/kubernetes 指南 + kind 环境适配
# chart: traefik/traefik 41.6.0 (app v3.7.13)
# 文档: https://doc.traefik.io/traefik/setup/kubernetes/
#
# ⚠️ 本文件只写"需要覆盖的项"，其余走 chart 默认值。
# ============================================================

# ---------- ① 入口点 + HTTP→HTTPS 强制重定向 ----------
# EntryPoints = Traefik 的网络监听器
ports:
  web:                             # HTTP 入口点
    port: 8000                     # ⭐ 容器内监听端口（非特权！chart 默认就是 8000）
                                   #    chart 默认 runAsNonRoot:65532 + drop ALL
                                   #    非 root 绑不了 80 → 必须用 8000 这种非特权端口
    exposedPort: 80                # ⭐ Service 层对外暴露 80（映射到容器 8000）
    nodePort: 30000                # kind 上靠 NodePort 访问 → 30000 → 80 → 8000
    http:
      redirections:
        entryPoint:
          to: websecure            # 所有 HTTP 流量 → 跳到 HTTPS
          scheme: https
          permanent: true          # 301 永久重定向
  websecure:                       # HTTPS 入口点
    port: 8443                     # ⭐ 容器内监听（非特权），同理不能用 443
    exposedPort: 443               # ⭐ Service 层对外暴露 443
    nodePort: 30001

# ---------- ② Dashboard 安全模式 ----------
api:
  dashboard: true
  insecure: false                  # 不走明文 HTTP 暴露控制接口

# ---------- ③ Dashboard 路由（走 HTTPS + 挂认证中间件）----------
ingressRoute:
  dashboard:
    enabled: true
    matchRule: Host(`dashboard.docker.localhost`)
    entryPoints:
      - websecure                  # 只从 HTTPS 进
    middlewares:
      - name: dashboard-auth       # ← 挂 BasicAuth

# ---------- ④ 用 extraObjects 直接在 chart 里创建 Secret + Middleware ----------
extraObjects:
  - apiVersion: v1
    kind: Secret
    metadata:
      name: dashboard-auth-secret
    type: kubernetes.io/basic-auth
    stringData:
      username: admin
      password: "P@ssw0rd"         # ← 改成你自己的密码
  - apiVersion: traefik.io/v1alpha1
    kind: Middleware
    metadata:
      name: dashboard-auth
    spec:
      basicAuth:
        secret: dashboard-auth-secret   # ← 引用上面创建的 Secret 资源名（不是密码）

# ---------- ⑤ Provider 选择（= 阶段 3.1 的三种接入方式）----------
ingressClass:
  enabled: true                    # ⭐ 文档 false → 改 true（阶段 3.1 要用原生 Ingress）
  isDefaultClass: true

providers:
  # ① Traefik 自己的 CRD —— IngressRoute
  kubernetesCRD:
    enabled: true                  # [chart 默认 true]
    allowCrossNamespace: false     # [默认 false] ⭐ 阶段 3.2 学跨 ns 引用时才开
    allowExternalNameServices: false
    allowEmptyServices: true       # 后端无 endpoint 返 503 而不是挂死

  # ② 原生 K8s Ingress —— 迁移存量用
  kubernetesIngress:
    enabled: true                  # ⭐ 文档 false → 改 true（阶段 3.1 要用）
    allowEmptyServices: true

  # ③ Gateway API —— 未来的标准
  kubernetesGateway:
    enabled: true                  # [chart 默认 false] 已开
    experimentalChannel: true      # [默认 false] ⭐ Gateway API experimental 通道
                                   #   （需配 experimental-install.yaml CRD，已装 v1.6.1）
    namespaces: []                 # 空 = watch 全部 namespace

# ---------- ⑥ Gateway 监听器 ----------
# ⚠️ enabled: true 必须显式写！chart 默认有，但手改 values 时容易丢（踩过坑）
gateway:
  enabled: true
  listeners:
    web:                           # 对应 entryPoint `web`
      port: 8000                   # ⭐ 必须 = ports.web.port（entryPoint 实际监听端口）
      protocol: HTTP
      namespacePolicy:
        from: All                  # 允许所有 ns 的 HTTPRoute 挂载（生产建议收紧）
    websecure:                     # 对应 entryPoint `websecure`
      port: 8443                   # ⭐ 必须 = ports.websecure.port
      protocol: HTTPS              # TLS 在 Traefik 内终止
      namespacePolicy:
        from: All
      mode: Terminate
      certificateRefs:
        - kind: Secret
          name: local-selfsigned-tls   # ← 引用步骤4创建的自签证书 Secret
          group: ""

# ---------- ⑦ Service 类型（kind 适配）----------
service:
  spec:
    type: NodePort                 # ⭐ chart 默认 LoadBalancer → kind 上永远 <pending>


helm upgrade --install traefik ./ -f my-values.yaml -n traefik --create-namespace
NAME                           READY   STATUS    RESTARTS   AGE
pod/traefik-6cf8d6b848-67j6p   1/1     Running   0          2m40s

NAME              TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
service/traefik   NodePort   10.96.175.101   <none>        80:30000/TCP,443:30001/TCP   17h

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/traefik   1/1     1            1           17h

kubectl describe GatewayClass traefik
Name:         traefik
Namespace:
Labels:       app.kubernetes.io/instance=traefik-traefik
              app.kubernetes.io/managed-by=Helm
              app.kubernetes.io/name=traefik
              helm.sh/chart=traefik-41.6.0
Annotations:  meta.helm.sh/release-name: traefik
              meta.helm.sh/release-namespace: traefik
API Version:  gateway.networking.k8s.io/v1
Kind:         GatewayClass
Metadata:
  Creation Timestamp:  2026-09-23T09:28:23Z
  Generation:          1
  Resource Version:    28787211
  UID:                 81899e87-57b1-44ed-adac-f41297829a1b
Spec:
  Controller Name:  traefik.io/gateway-controller
Status:
  Conditions:
    Last Transition Time:  2026-09-23T10:36:56Z
    Message:               Handled by Traefik controller
    Observed Generation:   1
    Reason:                Handled
    Status:                True
    Type:                  Accepted
  Supported Features:
    Name:  BackendTLSPolicy
    Name:  GRPCRoute
    Name:  GRPCRouteNamedRouteRule
    Name:  Gateway
    Name:  GatewayPort8080
    Name:  HTTPRoute
    Name:  HTTPRoute303RedirectStatusCode
    Name:  HTTPRoute307RedirectStatusCode
    Name:  HTTPRoute308RedirectStatusCode
    Name:  HTTPRouteBackendProtocolH2C
    Name:  HTTPRouteBackendProtocolWebSocket
    Name:  HTTPRouteBackendRequestHeaderModification
    Name:  HTTPRouteDestinationPortMatching
    Name:  HTTPRouteHostRewrite
    Name:  HTTPRouteMethodMatching
    Name:  HTTPRouteNamedRouteRule
    Name:  HTTPRouteParentRefPort
    Name:  HTTPRoutePathRedirect
    Name:  HTTPRoutePathRewrite
    Name:  HTTPRoutePortRedirect
    Name:  HTTPRouteQueryParamMatching
    Name:  HTTPRouteResponseHeaderModification
    Name:  HTTPRouteSchemeRedirect
    Name:  ReferenceGrant
    Name:  TLSRoute
    Name:  TLSRouteModeMixed
    Name:  TLSRouteModeTerminate
Events:    <none>

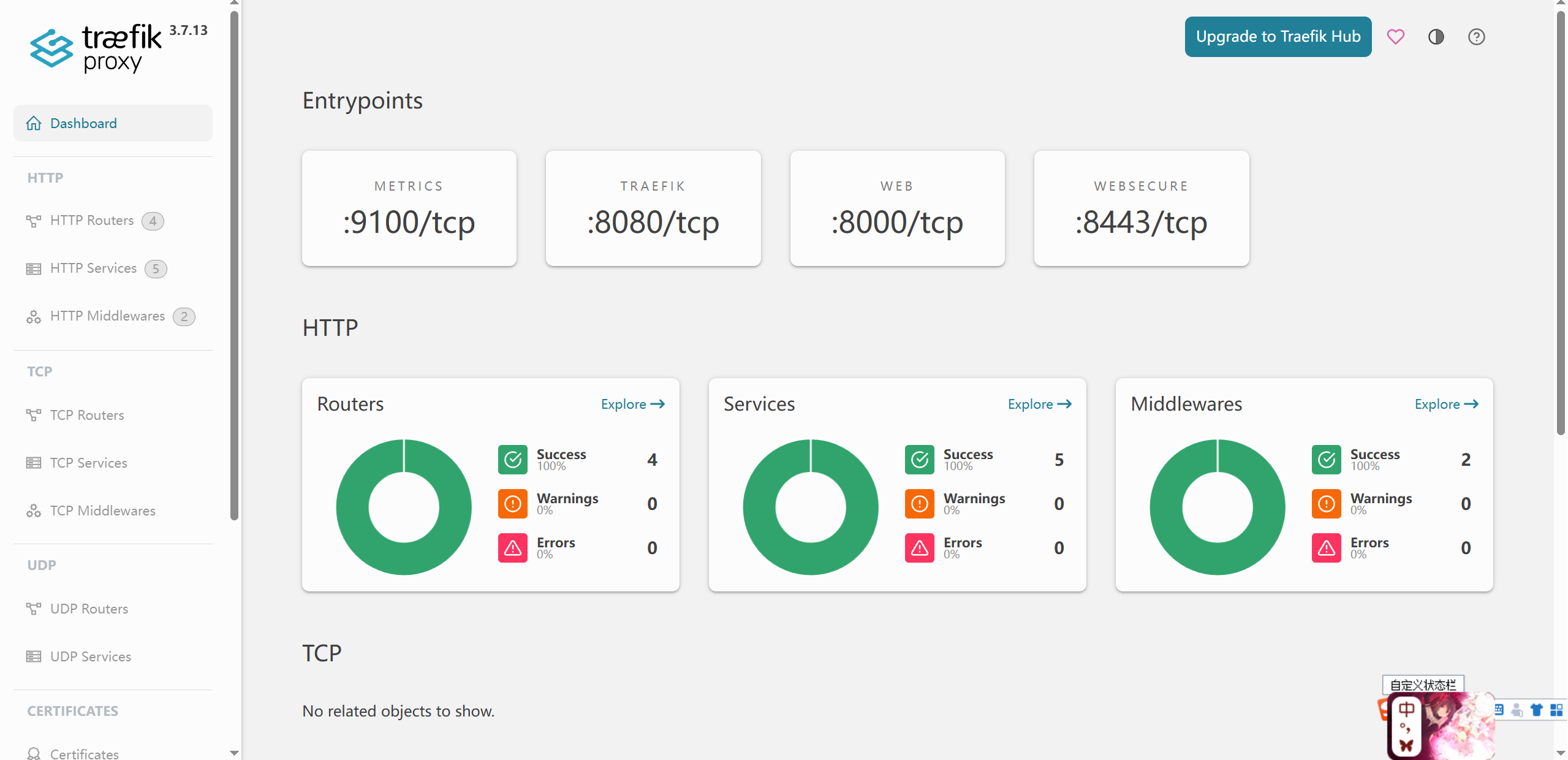

# 登录traefik网页版
kubectl port-forward -n traefik svc/traefik --address 0.0.0.0 8443:443 &

![](https://ws-blog-img.oss-cn-hangzhou.aliyuncs.com/wangsheng/20260924141302527.png)

对象 命名格式 你的实例 谁生成
Router <逻辑名>@<provider> traefik-traefik-dashboard-<hash>@kubernetescrd<br>web-to-443@internal provider
Service（K8s 后端） <namespace>-<服务名>-<端口>@<provider> whoami-traefik-80@kubernetescrd ← 部署 whoami 后才出现 provider
Service（内置） <功能>@internal api / noop / ping / prometheus / dashboard Traefik 自己
Middleware <逻辑名>@<provider> traefik-dashboard-auth@kubernetescrd<br>redirect-web-to-443@internal provider

创建测试业务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
cat > /tmp/whoami.yaml <<'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami
  namespace: traefik
spec:
  replicas: 2
  selector:
    matchLabels: { app: whoami }
  template:
    metadata:
      labels: { app: whoami }
    spec:
      containers:
        - name: whoami
          image: traefik/whoami
          ports: [{ containerPort: 80 }]
---
apiVersion: v1
kind: Service
metadata:
  name: whoami
  namespace: traefik
spec:
  selector: { app: whoami }
  ports: [{ port: 80 }]
EOF
kubectl apply -f /tmp/whoami.yaml

cat > /tmp/whoami-route.yaml <<'EOF'
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: whoami
  namespace: traefik
spec:
  entryPoints:
    - websecur
  routes:
    - match: PathPrefix(`/whoami`)
      kind: Rule
      services:
        - name: whoami
          port: 80
EOF

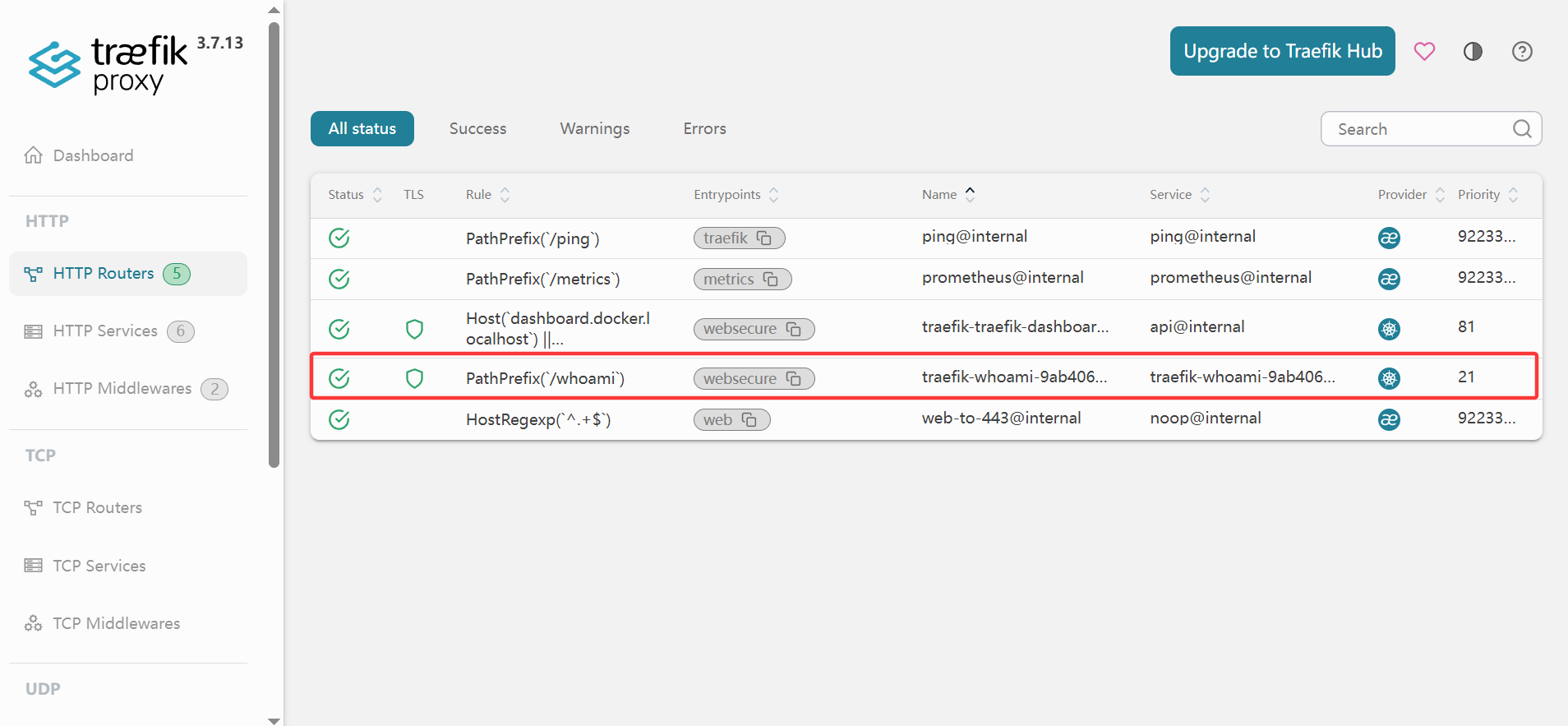

kubectl apply -f /tmp/whoami-route.yaml

![](https://ws-blog-img.oss-cn-hangzhou.aliyuncs.com/wangsheng/20260924152928208.png)

middleware组件

middleware就是可以自定义使用哪些插件，并且定义插件使用的顺序：
比如顺序 A：认证在前，限流在后
不带密码访问 → 401
带对密码、但超了限速 → 429
顺序B：限流在前，认证在后
不带密码访问 → 429或401
带对密码、但超了限速 → 429

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
# middleware.yaml
# 1) 建你自己的 Middleware
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: rate-limiter
  namespace: traefik
spec:
  rateLimit:
    average: 100
    burst: 50
---
# 2) 路由：加 priority（解决冲突）+ 挂 middleware
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: whoami
  namespace: traefik
spec:
  entryPoints:
    - websecure
  routes:
    - match: PathPrefix(`/whoami`)
      kind: Rule
      priority: 200                      # 大于 dashboard 的 81
      middlewares:
        - name: rate-limiter             # 自建 Middleware，这个顺序是从上到下去执行的
      services:
        - name: whoami
          port: 80

kubectl apply -f middleware.yaml

curl -k https://172.19.0.4:30001/whoami
Hostname: whoami-86dcdbd44b-tzdwm
IP: 127.0.0.1
IP: ::1
IP: 10.244.2.22
IP: fe80::9444:c9ff:fee1:5fa6
RemoteAddr: 10.244.1.17:44788
GET /whoami HTTP/1.1
Host: 192.168.10.100
User-Agent: curl/7.76.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 172.19.0.4
X-Forwarded-Host: 192.168.10.100
X-Forwarded-Port: 443
X-Forwarded-Proto: https
X-Forwarded-Server: traefik-6cf8d6b848-67j6p
X-Real-Ip: 172.19.0.4

# 如果前面不讲PathPrefix(`/whoami`)的优先级调到高于dashboard，就会将其路由到dashboard，然后401
...
ingressRoute:
  dashboard:
    enabled: true
    matchRule: Host(`dashboard.docker.localhost`) || Host(`192.168.10.100`) || Host(`127.0.0.1`)
...

Provider 机制

  • Provider 是什么：配置的来源。file / docker / kubernetesCRD / kubernetesIngress / kubernetesGateway / consul / etcd 等十几种——你已经用过的 k8sCRD 只是其中一种
  • 热加载 vs reload：改配置 → 秒级生效，没有 reload 这个动作
  • 多 Provider 并存：同一个 Traefik 实例可以同时吃 Docker label + K8s CRD + file 文件，三份配置聚合到一起（Dashboard 里那些 @kubernetescrd、@internal 后缀就是来源标记）
  • static vs dynamic 的硬边界：启动时定死的（端口、provider 开关）vs 运行期随时改的（路由、中间件）
分组 Provider 监听什么
K8s kubernetesCRD IngressRoute/Middleware CRD
K8s kubernetesIngress 原生 Ingress 资源
K8s kubernetesGateway Gateway API HTTPRoute
K8s kubernetesIngressNGINX 原生 Ingress + nginx.ingress.kubernetes.io 注解翻译
K8s knative Knative 资源
文件 file 一个 YAML 文件/目录
容器平台 docker / swarm / ecs / nomad / rancher 容器 label
KV 存储 consul / consulCatalog / etcd / redis KV 里的配置
values.yaml静态文件关键配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
# entryPoints 入口点
ports:                    # 实际会转换的args
  web:                    # → --entryPoints.web.address=:8000/tcp
    port: 8000            #   --entryPoints.web.http.redirections.entryPoint.to=:443
    http:                 #   ...scheme=https  ...permanent=true
      redirections: ...   #   HTTP→HTTPS 301
  websecure:
    port: 8443            # → --entryPoints.websecure.address=:8443/tcp
                          #   --entryPoints.websecure.http.tls=true
  metrics:
    port: 9100            # → --entryPoints.metrics.address=:9100/tcp
  traefik:
    port: 8080            # → --entryPoints.traefik.address=:8080/tcp（Dashboard 入口）

#  api 控制面
api:                      # → --api.dashboard=true
  dashboard: true         #   --api.insecure=false（不走明文 8080 开放 API）
  insecure: false

# providers 配置来源开关
providers:                          # → --providers.kubernetescrd
  kubernetesCRD:                    #   --providers.kubernetescrd.allowEmptyServices=true
    enabled: true                   # → --providers.kubernetesingress
    allowEmptyServices: true        #   --providers.kubernetesingress.allowEmptyServices=true
  kubernetesIngress:                #   ...ingressendpoint.publishedservice=traefik/traefik
    enabled: true                   # → --providers.kubernetesgateway
  kubernetesGateway:                #   ...experimentalchannel=true
    enabled: true                   #   ...statusaddress.service.name=traefik
    experimentalChannel: true

# file provider（例）
# 某些路由不想走 CRD（比如紧急兜底、或者配置要跟着镜像走）时的手工通道
# 可以通过改content → chart更新ConfigMap → watch → 热生效，不重启（仅需第一次添加时重启
providers:
  file:
    enabled: true
    watch: true        # 热加载
    content:
      http:
        routers:
          manual-route:                    # 手工兜底路由
            rule: PathPrefix(`/manual`)
            entryPoints: [websecure]
            service: whoami-direct
        services:
          whoami-direct:
            loadBalancer:
              servers:
                - url: http://whoami.traefik.svc.cluster.local:80   # 直接写后端地址

通过三种provider方式创建traefik路由

  • Ingress 尾缀@kubernetes，够用但不够表达
  • IngressRoute 尾缀@kubernetescrd，能力全开但锁死 Traefik
  • HTTPRoute 尾缀@kubernetesgateway，表达力 + 标准化可移植。
    日常主力 IngressRoute，HTTPRoute 必须会，原生 Ingress 只管存量兼容。
    能力 原生 Ingress IngressRoute HTTPRoute
    路径/Host 匹配 ✅ ✅ ✅
    Header/Method/Query 匹配 ❌ ✅ ✅
    挂中间件（限流/认证） ❌（靠注解） ✅ ⚠️ 部分（靠 BackendTLSPolicy 等政策对象）
    权重分流（金丝雀） ❌ ✅ TraefikService ✅ 天然支持 weight:
    跨 namespace ❌ ⚠️ 要开 allowCrossNamespace ✅ ReferenceGrant
    厂商可移植性 高（但能力弱） ❌ 只有 Traefik ✅ 标准化，换网关不用改

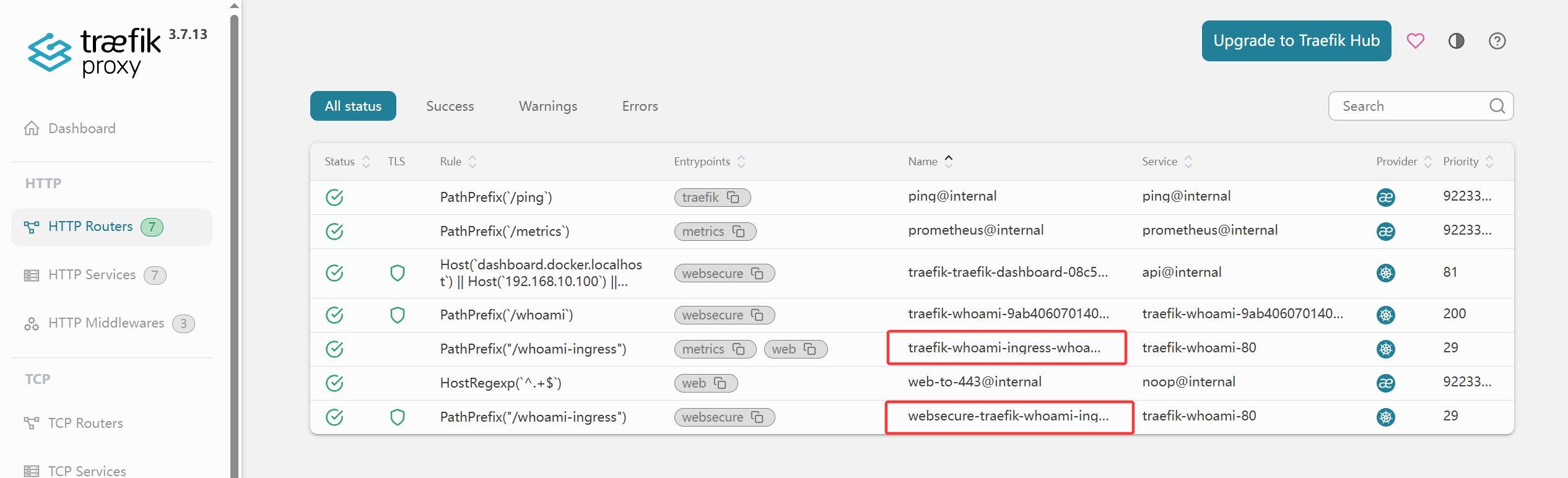

    原生Ingress暴露 whoami
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
# whoami-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: whoami-ingress
  namespace: traefik
spec:
  ingressClassName: traefik
  rules:
    - http:
        paths:
          - path: /whoami-ingress
            pathType: Prefix
            backend:
              service:
                name: whoami
                port:
                  number: 80

![](https://ws-blog-img.oss-cn-hangzhou.aliyuncs.com/wangsheng/20260930151104493.png)

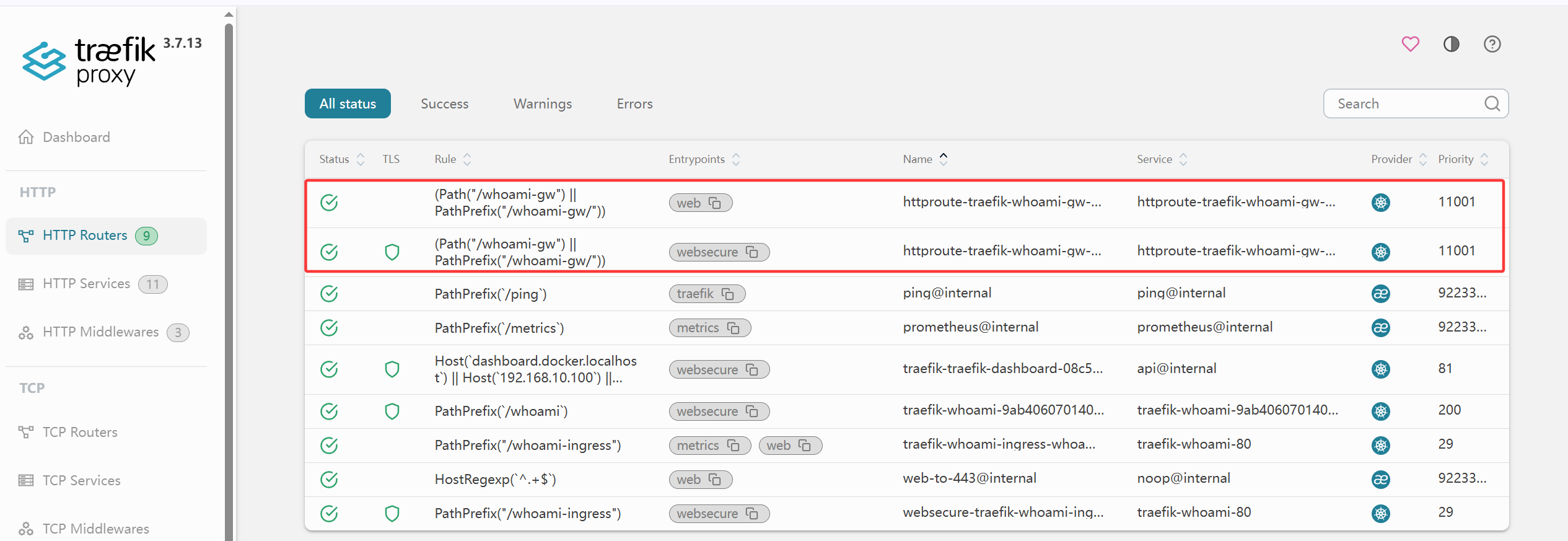

Gateway API 的 HTTPRoute

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# gatewayapi-whoami.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: whoami-gw
  namespace: traefik
spec:
  parentRefs:
    - name: traefik-gateway              # 引用Gateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /whoami-gw
      backendRefs:
        - name: whoami
          port: 80

![](https://ws-blog-img.oss-cn-hangzhou.aliyuncs.com/wangsheng/20260930164127462.png)

金丝雀发布

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
1.创建测试用v2服务
# whoami-v2.yaml
# ============ ① whoami-v2（灰度新版本）============
apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami-v2
  namespace: traefik
spec:
  replicas: 2
  selector:
    matchLabels: { app: whoami-v2 }
  template:
    metadata:
      labels: { app: whoami-v2 }
    spec:
      containers:
        - name: whoami
          image: traefik/whoami
          ports: [{ containerPort: 80 }]
---
apiVersion: v1
kind: Service
metadata:
  name: whoami-v2
  namespace: traefik
spec:
  selector: { app: whoami-v2 }
  ports: [{ port: 80 }]

kubectl apply -f whoami-v2.yaml


2.创建traefikservice进行分流
# whoami-canary.yaml
apiVersion: traefik.io/v1alpha1
kind: TraefikService
metadata:
  name: whoami-canary
  namespace: traefik
spec:
  weighted:
    services:
      - name: whoami
        port: 80
        weight: 90
      - name: whoami-v2
        port: 80
        weight: 10
kubectl apply -f whoami-canary.yaml

3.ingressroute指向新的service
# ir-service.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: canary
  namespace: traefik
spec:
  entryPoints: [websecure]
  routes:
    - match: PathPrefix(`/canary`)
      kind: Rule
      services:
        - name: whoami-canary
          kind: TraefikService
kubectl apply -f ir-service.yaml

for i in $(seq 1 100); do curl -sk https://172.19.0.4:30001/canary | grep ^Hostname; done \
  | awk '{print $2}' | awk -F- '{print ($2=="v2")?"v2":"v1"}' | sort | uniq -c
     90 v1
     10 v2

流量镜像

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
用户请求
   │
   ▼
Traefik（Router /mirror → TraefikService whoami-mirror）
   │
   ├─── ① 原始请求 ──▶ Service whoami (v1 Pod)
   │                       │
   │                       ▼
   │                   v1 的响应 ──────▶ 返回给用户 ✅【只有这条回程】
   │
   └─── ② 同一个请求复制一份 ──▶ Service whoami-v2 (v2 Pod)
                                    │
                                    ▼
                                v2 的响应 ──▶ Traefik 收到后直接丢弃 ❌

1.创建mirror.yaml
apiVersion: traefik.io/v1alpha1
kind: TraefikService
metadata:
  name: whoami-mirror
  namespace: traefik
spec:
  mirroring:
    name: whoami
    port: 80
    mirrors:
      - name: whoami-v2
        port: 80
        percent: 100
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: mirror-demo
  namespace: traefik
spec:
  entryPoints: [websecure]
  routes:
    - match: PathPrefix(`/mirror`)
      kind: Rule
      services:
        - name: whoami-mirror
          kind: TraefikService

kubectl apply -f mirror.yaml


curl -s http://127.0.0.1:9100/metrics | grep 'traefik_service_requests_total' | grep whoami
traefik_service_requests_total{code="200",method="GET",protocol="http",service="traefik-whoami-80@kubernetescrd"} 510
traefik_service_requests_total{code="200",method="GET",protocol="http",service="traefik-whoami-v2-80@kubernetescrd"} 190

for i in $(seq 1 100); do curl -sk https://172.19.0.4:30001/mirror | grep ^Hostname; done | sort | uniq -c
50 Hostname: whoami-86dcdbd44b-jnf9v
50 Hostname: whoami-86dcdbd44b-tzdwm

curl -s http://127.0.0.1:9100/metrics | grep 'traefik_service_requests_total' | grep whoami
traefik_service_requests_total{code="200",method="GET",protocol="http",service="traefik-whoami-80@kubernetescrd"} 610
traefik_service_requests_total{code="200",method="GET",protocol="http",service="traefik-whoami-v2-80@kubernetescrd"} 290

通过100次访问之后，v1和v2两个服务计数都已经增加了100

原文作者：王盛

原文链接：https://akemi.zj.cn/2026/10/03/Traefik-Basic-Concepts-And-Helm-Deploy/

发表日期：October 3rd 2026, 4:54:00 pm

更新日期：October 3rd 2026, 4:55:07 pm

版权声明：本文采用知识共享署名-非商业性使用 4.0 国际许可协议进行许可

📚 相关文章推荐

2026-09-17 APISIX网关--helm部署与插件使用 #API网关 #Kubernetes 2026-09-15 APISIX网关--docker部署与基础概念 #API网关 2026-06-16 自动清理镜像思路优化、amd/arm双镜像 #Kubernetes
CATALOG
  1. 1. 特点
  2. 2. 基础概念与首次部署
    1. 2.1. 创建测试业务
    2. 2.2. middleware组件
    3. 2.3. Provider 机制
    4. 2.4. 通过三种provider方式创建traefik路由
  3. 3. 金丝雀发布
  4. 4. 流量镜像
Total : 359
2026
2025
2024
2023
APISIX Docker API网关 Kubernetes 自动化 web服务 k8s DaemonSet Linux服务 前端 Buildah 多架构 容器镜像 存储 Consul VictoriaMetrics Promxy 虚拟化 网络 Python 容器 Dify Prometheus 数据库 PVE EVE-NG EFK Elasticsearch ELK logstash filebeat elasticsearch kibana Kibana GeoIP 数据清洗 Fluentd Fluent Bit etcd 运维 安全 纳甲六爻 易经 六爻 六神 AI 占卜 GPU虚拟化 HAMi Milvus Helm LangChain DNS CoreDNS 数据备份 MoneyPrinter 夜莺 监控告警 OpenEBS 容器技术 实战 PostgreSQL Patroni K8s 监控 Rsyslog 审计日志 Traefik Blackbox Exporter Meilisearch 博客优化 iflow OpenClaw iFlow 故障处理 容器运行时 测试
